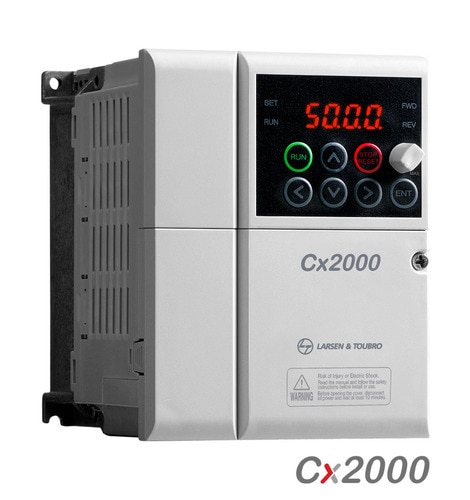

Cx2000 AC Drives

The Cx2000 AC Drives is perfectly suited for conveyors, pumps, fans and textile machinery. It handles loads up to 11 kW, and is engineered to keep your machine operating at optimum efficiency, even in the hot, humid and dusty conditions that characterise India's industrial environment.

Range:

Single Phase 230V - 0.1 to 2.2kW

Three Phase 230V - 0.2 to 11kW

Three Phase 415V - 0.75 to 11kW

Enclosures:

IP20

Features:

V/F Control, Sensorless Vector Control, Slip Compensation

Starting Torque 150% at 3 Hz

Built-in Potentiometer

Conformal Coated PCB

Built-in RS485 Modbus

RPM Display

Draw Mode

Brake Control

Compact, Lightweight,

Easy to install,

Operate and service

Auto Tuning

Built-in PID

2nd Motor Operation

Built-in Safety circuit

Built-in Braking Chopper up to 11kW

Dual rating operation:

Designed to be used for heavy and normal duty applications.

Overload capacity:

Heavy duty operation: 150% of rated current for 60 sec

Normal duty operation: 110% of rated current for 60 sec

Built-in Potentiometer:

Possible to add reference from keypad and external signal

Provides external potentiometer for easier frequency control

Built-in PID:

Cx2000 has built-in PID which saves use of external PID

2nd Motor Operation:

Single AC Drive can maintain 2 motor parameters connected to 2 different loads with different Accel / Deccl parameter setting

For isolated operation of motors one VFD can be used in place of 2

Easy Maintenance:

Tool-less replacement of Cooling Fan.

Built-in Brake Chopper:

Built-in brake chopper which saves panel space.
